Servi

These endpoints and their message types are only available for the Servi robot family. Attempting to run a Servi commands on a non Servi robot will result in an INVALID_ARGUMENT error.

CreateMission

Use the shared CreateMission endpoint to send missions for Servi robots. Servi-specific missions must be sent using the appropriate request message format.

Note

When sending a Servi mission, servi.Feedback is returned in SubscribeMissionStatus response message.

servi.Feedback enum
Name Number Description
STATUS_UNKNOWN 0 Default value. It means status field is not returned.
STATUS_NAVIGATING 1 The robot is currently navigating to its goal.
STATUS_ARRIVED 2 The robot has arrived at a goal.
STATUS_DOCKING 3 The robot is performing a docking maneuver.
STATUS_UNDOCKING 4 The robot is performing an undocking maneuver.

Request

robot_id string required

The ID of the robot that will receive this command.

mission Mission required

Universal wrapper for mission types. Only one mission type may be set at a time.

Field (oneof) Message Type Description
base_mission BaseMission Base missions are applicable to all robot families.
Refer to Mission for how to create and send a base mission.
servi_mission servi.Mission Servi missions are specific to the Servi robot family.
carti_mission carti.Mission Carti missions are specific to the Carti robot family.
Refer to Carti for how to create and send a carti mission.
servi_mission servi.Mission

Use the field servi_mission to create and send a servi mission. Current API version supports 4 types of Servi mission.

Field (oneof) Message Type Description
bussing_mission BussingMission Create a servi mission of type Bussing.
bussing_patrol_mission BussingPatrolMission Create a servi mission of type BussingPatrol.
delivery_mission DeliveryMission Create a servi mission of type Delivery.
delivery_patrol_mission DeliveryPatrolMission Create a servi mission of type DeliveryPatrol.
bussing_mission BussingMission

A mission that navigates to one or more goals, stopping at each for a set amount of time or until some weight is added.

Field Message Type Description
goals repeated Goal
required		 a list of Goal
params BussingParams
optional		 There is no param defined in this API version.
bussing_patrol_mission BussingPatrolMission

A mission that continuously loops through goals, stopping at each for a set amount of time or until weight exceeds a threshold.

Field Message Type Description
goals repeated Goal
required		 a list of Goal
params BussingPatrolParams
optional		 There is no param defined in this API version.
delivery_mission DeliveryMission

A mission that navigates to one or more goals, stopping at each for a set amount of time or until some weight is removed.

Field Message Type Description
goals repeated Goal
required		 a list of Goal
params DeliveryParams
optional		 There is no param defined in this API version.
delivery_patrol_mission DeliveryPatrolMission

A that continuously loops through goals, stopping at each for a set amount of time or until all weight is removed.

Field Message Type Description
goals repeated Goal
required		 a list of Goal
params DeliveryPatrolParams
optional		 There is no param defined in this API version.
JSON Request Example
  {
    "robotId": "pennybot-456efg",
    "mission": {
      "serviMission": {
        "bussingMission": {
          "goals": [
            { "destinationId": "pickup-table-1" },
            { "destinationId": "dropoff-station-3" }
          ],
          "params": {}
        }
      }
    }
  }

Response

mission_id string

The ID of the mission created.

JSON Response Example
  {
    "missionId": "mission-abc123"
  }

Errors

ErrorCode Description
INVALID_ARGUMENT This command is sending to is not a Carti family robot.
FAILED_PRECONDITION The robot is already executing another mission.
This command is valid if current mission is in terminal state,
e.g Cancelled, Succeeded, Failed.

SubscribeTrayStatuses

Subscribes to the robot’s tray status updates.
Upon subscription, the latest known tray states are sent immediately. Updates are streamed when any tray state changes.

Weight changes are reported with 10g precision.

Request

selector RobotSelector required

RobotSelector is used to select specific robots.
It supports selection by a list of robot IDs or all robots at a given location.

  1. robot_ids RobotIDs
    Selects robots by their specific IDs.
    Example: ["pennybot-123abc", "pennybot-abc123"]

  2. location_id string
    Selects all robots at the specified location.

JSON Request Example
  {
    "selector": {
      "robotIds": {
        "ids": [
          "pennybot-456efg"
        ]
      }
    }
  }

Response

tray_states map<string, TrayStatesWithMetadata>

A mapping of tray states reported by individual robots. Each entry pairs a robot ID (key) with its corresponding tray states.

TrayStatesWithMetadata
Field Message Type Description
metadata EventMetadata Metadata associated with the tray states.
tray_states TrayStates The tray states reported by the robot.
TrayStates TrayState repeated

State of enabled trays, ordered from the top-most tray on the robot to the bottom.

TrayState

Represents the state of a single tray.

Field Message Type Description
tray_name string Unique string name for the given tray.
e.g. "top", "middle", "bottom"
See illustrations for tray configurations on different robot models.
load_state LoadState enum
weight_kg float Weight on the tray in kilograms. Minimum precision is 10g.
load_ratio float Ratio of the current load to the tray’s maximum load capacity.
This value may exceed 1.0 if the tray is overloaded.
Caveats:
- If the maximum load is misconfigured (e.g., set to 0.0),
this value may return NaN.
LoadState enum
Name Number Description
LOAD_STATE_UNKNOWN 0 Default value. It means the load_state field is not returned.
LOAD_STATE_LOADED 1 The tray has a valid load.
LOAD_STATE_EMPTY 2 The tray is empty.
LOAD_STATE_OVERLOADED 3 The tray is carrying more than its maximum capacity.

Errors

ErrorCode Description
INVALID_ARGUMENT This command is sending to is not a Servi family robot.
PERMISSION_DENIED Attempting to request status for a robot_id or location_id you don't own.
Tip: check the spelling of all robot_id or location_id values.
JSON Response Example
{
  "trayStates": {
    "pennybot-456efg": {
      "metadata": {
        "timestamp": "2025-04-01T16:00:00Z",
        "sequenceNumber": 105
      },
      "trayStates": [
        {
          "trayName": "top",
          "loadState": "LOAD_STATE_OVERLOADED",
          "weightKg": 8.1,
          "loadRatio": 1.18
        },
        {
          "trayName": "middle",
          "loadState": "LOAD_STATE_LOADED",
          "weightKg": 2.3,
          "loadRatio": 0.76
        },
        {
          "trayName": "bottom",
          "loadState": "LOAD_STATE_EMPTY",
          "weightKg": 0,
          "loadRatio": 0
        }
      ]
    }
  }
}
Tray configurations on different Servi models

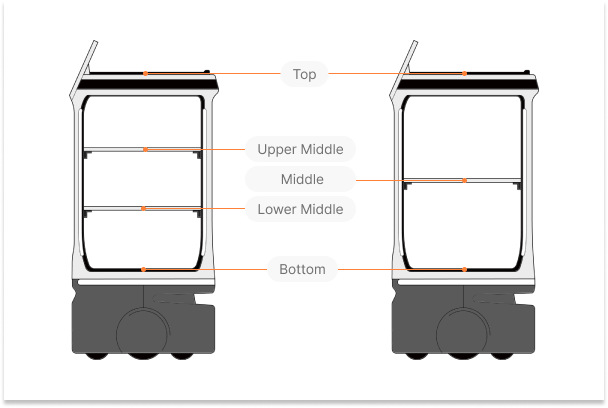

Servi Plus

Servi Plus

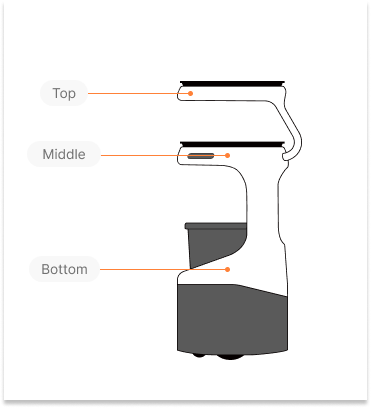

Servi

Servi

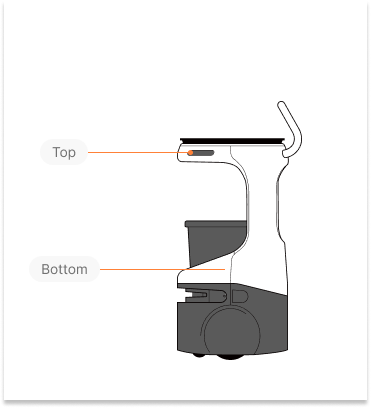

Servi Mini

Servi Mini
