Localization

Localization status is to see whether the robot “knows” where it is in the map. This is critical for operation, as the robot needs to have an accurate understanding of its place in the environment in order to navigate reliably. Once localized, our robots are able to keep themselves localized as they move through an environment, using sensor data to compare what it sees to what is on its map. This means it only needs to figure out where it is once, and can stay localized from there. A robot may become delocalized, meaning it has lost track of where it is in the map. This can happen for various reasons, such as:

  1. It cannot find walls or landmarks from its map in the sensor data
  2. Often because walls are obscured by lots of new obstacles
  3. It encounters an area that looks very similar to many other locations in the map
  4. For example, a long featureless hallway looks the same to the sensors from many different places
  5. It faces significant slippage of the wheels
  6. This is more rare as we have compensation for wheel slip, but if significant enough, it can confuse the robot

In the event of delocalizing, the user will need to trigger localization again to tell the robot where it is, before having it navigate again.

Some clear definitions for localization terminology are as follows:

  1. Localized
  2. Robot knows where it is in the environment
  3. Localizing
  4. Robot is currently running a process to figure out where it is
  5. Currently our API does this with a hint about its position, given by the user
  6. Eventually this hint will not be required, and robot can do the initial localization on its own
  7. Delocalized
  8. Robot has lost track of where it is in the environment
  9. Likely this means it cannot navigate anymore
  10. In this event, the user will need to localize the robot again to tell the robot its current location
  11. Pose
  12. The x-y coordinate on the robot’s map
  13. This is used frequently to say either where the robot is, or for telling the robot where it is on the map

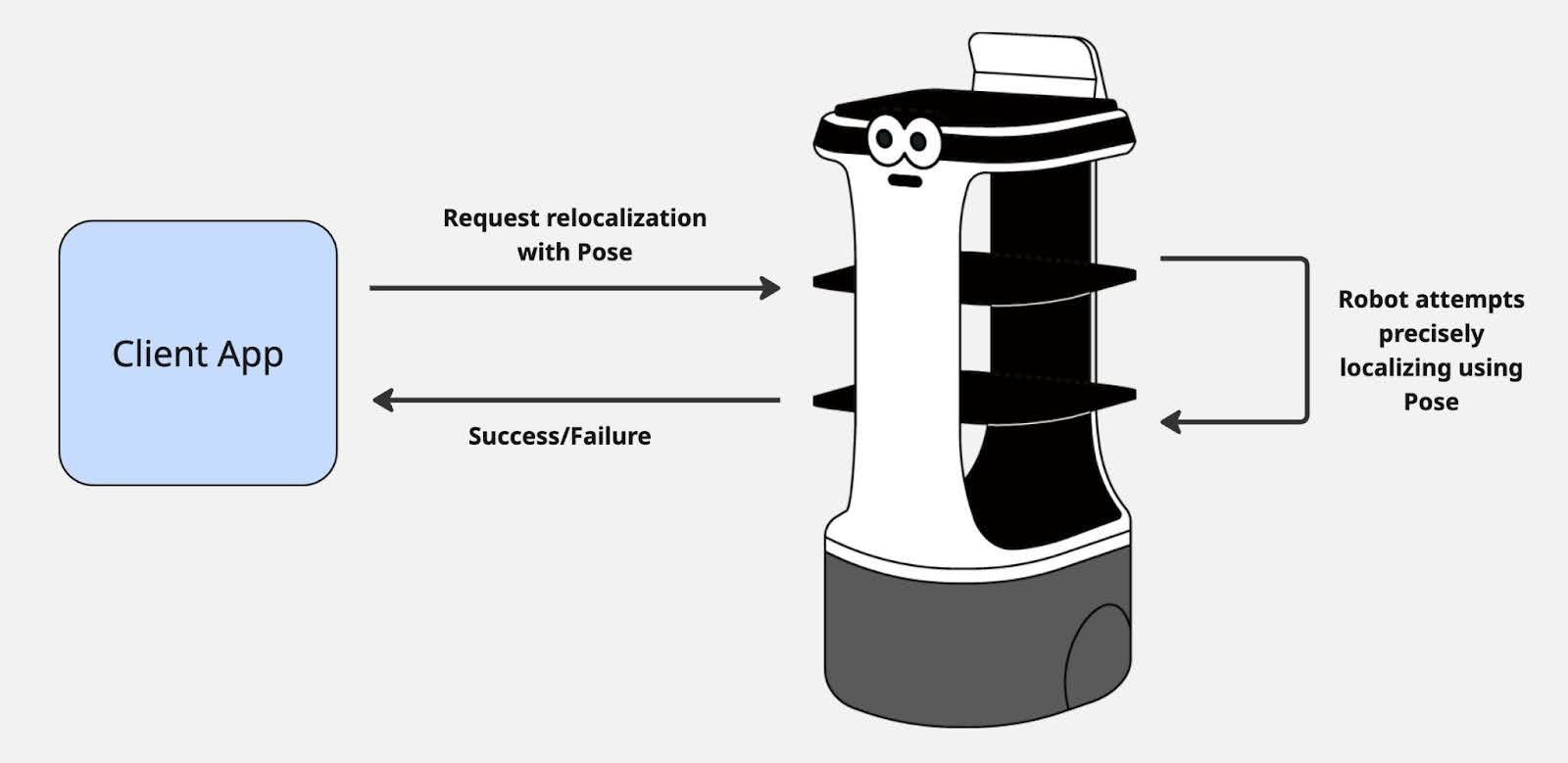

We supply a mechanism for triggering a robot localization. This means the user tells the robot an estimation of where the robot is in the map (using a Pose), and the robot uses this guess to more accurately find its place. If the localization process is a success, it returns Success state. If the localization process fails, it will return Failed state, meaning the robot is not able to start driving autonomously.

Robot localization
